Description

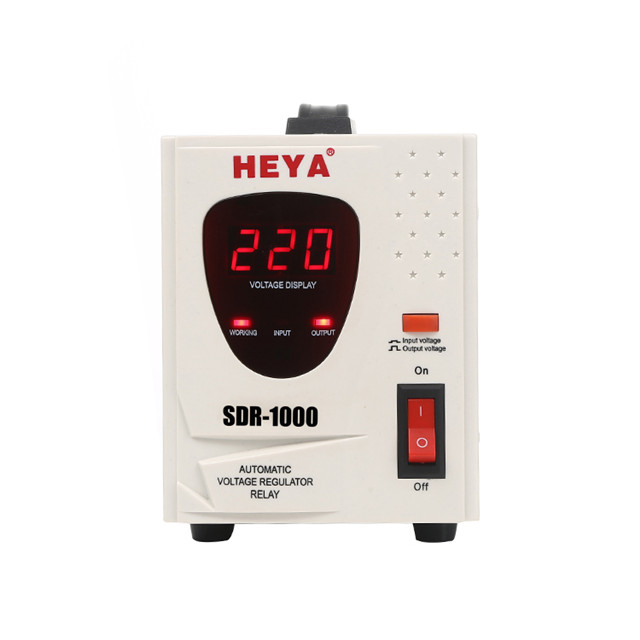

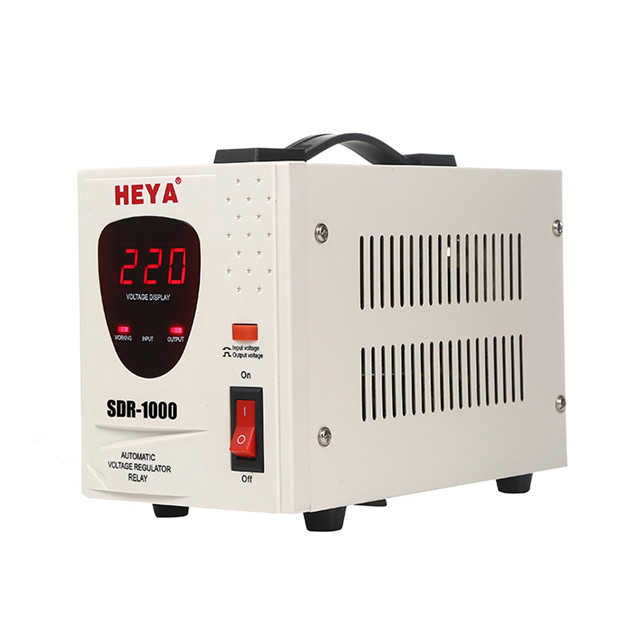

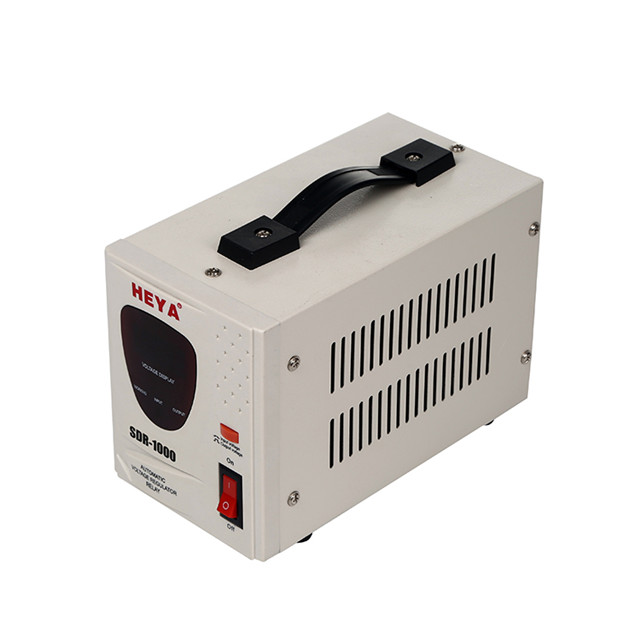

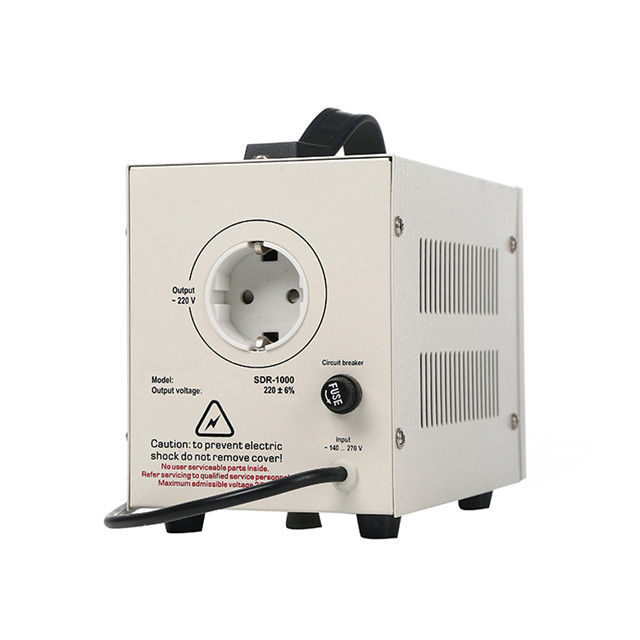

Relay Type Home Power 1KVA Voltage Stabilizer
| Model | SDR- 500VA | SDR- 1000VA | SDR- 2000VA | SDR- 3000VA | SDR- 5000VA | SDR-10000VA | SDR-12000VA |
| Technology | Relay Control System+Micro compute programed control+control algorithm relay" Cross zero" | ||||||
| LED Display | Color | According to customer requirement, voltage stabilizer | |||||
| Info | Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection | ||||||
| Protection | Over Voltage | Output voltage ≥ 245v± 4 | |||||
| Over Loading | more than 120% | ||||||
| Over Temperture | 120° C± 10° C | ||||||
| Delay time | 3 second | ||||||
| Lauguage | English/Russia/Chinese | ||||||
| Input Voltage | AC140-260V | ||||||
| Output Voltage | 220V± 8% Adjustable | ||||||
| Frequency | 50Hz/60Hz | ||||||
| Phase | Single Phase voltage stabilizer | ||||||
| Efficiency | ≥ 90% | ||||||
| Ambient Temperature | -15° C~45° C | ||||||
| Relative Humidity | < 95% | ||||||
| Waveform distortion | No additional wave form distortion | ||||||
| Insulating Resistance | Normally more than 2MΩ | ||||||
| Power | 350W | 700W | 1400W | 2400W | 3500W | 7000W | 9600W |
| Packing Size(mm) | 575× 275× 380 | 575× 275× 380 | 355× 305× 450 | 355× 305× 450 | 515× 420× 310 | 460× 265× 310 | 460× 265× 310 |
| Packing | 8 | 8 | 4 | 4 | 2 | 1 | 1 |
| G. M | 19.52 | 23.12 | 21.92 | 23.32 | 22.72 | 15.90 | 18.70 |
Packaging information
Model |
Unit PCS |
Device Size MM |
Package Size MM |
G. W. KGS |
SDR-500 |
8 |
210*110*150 |
495*280*350 |
19.52 |
SDR-1000 |
8 |
210*110*150 |
495*280*350 |
23.12 |
SDR-1500 |
4 |
240*150*185 |
375*305*435 |
17.60 |
SDR-2000 |
4 |
240*150*185 |
375*305*435 |
21.92 |
SDR-3000 |
4 |
240*150*185 |
375*305*435 |
23.32 |
SDR-5000 |
2 |
340*220*250 |
515*420*300 |
22.72 |
SDR-8000 |
1 |
385*220*250 |
460*265*300 |
13.50 |
SDR-10000 |
1 |
385*220*250 |
460*265*300 |
15.20 |
SDR-12000 |
1 |
385*220*250 |
460*265*300 |
16.20 |
Relay Type Home Power 1KVA Voltage Stabilizer
HEYA
Introducing the SDR Relay Type Home Power 1KVA Voltage Stabilizer by HEYA. Designed to ensure a stable and uninterrupted power supply to your home. It is the perfect solution to shield your appliances and electronics from voltage fluctuations which can lead to bumps brownouts and even surges. Uses advanced technology to monitor and regulate the input voltage to the desired output range. Enjoy a steady flow of electricity to all your devices including fridges air conditioners and televisions without worrying about fluctuations that could harm them. With a power rating of 1KVA capable of handling high loads safely while still delivering an excellent performance. Easy to install and the operation is straightforward. The AC output voltage display allows you to monitor the output voltage constantly giving you peace of mind knowing that your appliances are receiving stable power. Features inbuilt protection against overvoltage under voltage short-circuiting and overload. I there were any power surge this would switch off automatically to protect your appliances. Crucial in areas where power fluctuations are common. Provides the ultimate protection your home deserves. Also designed with durability in mind. Can withstand harsh environmental conditions and will last for an extended periods. Doesn't take up much space in your home. This is an excellent investment for anyone looking to protect their appliances while enjoying a steady power supply. Order yours today.
