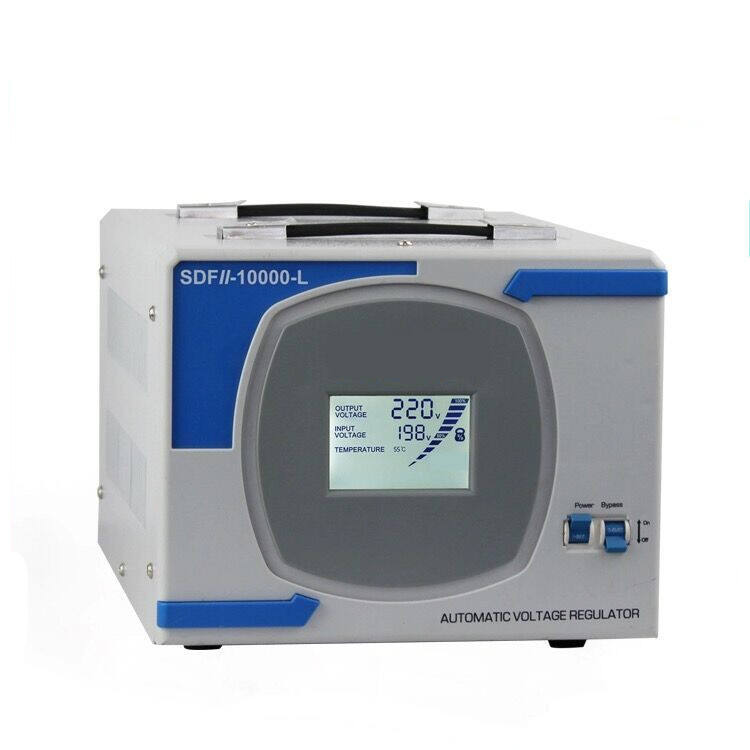

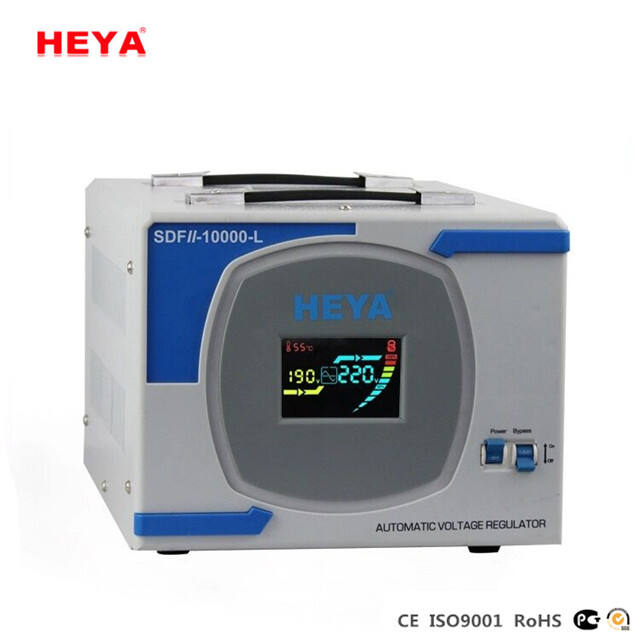

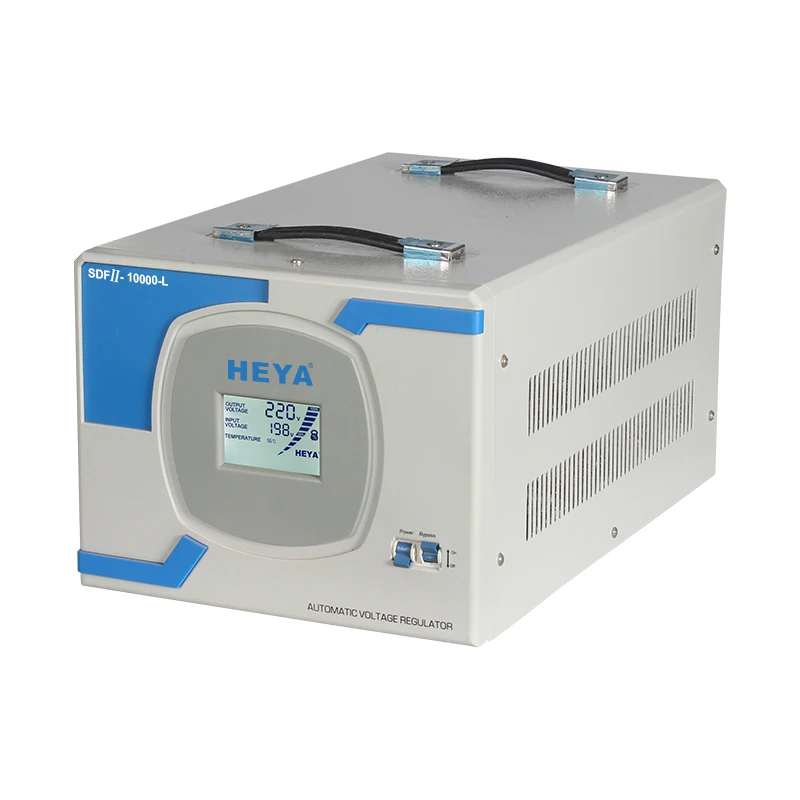

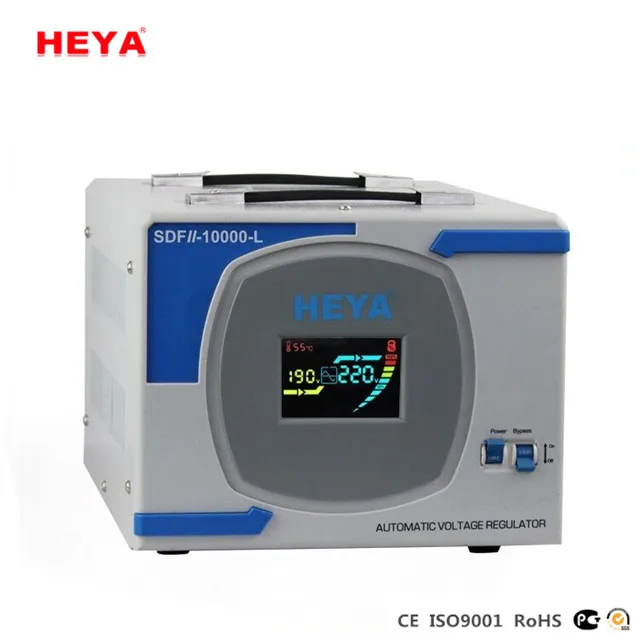

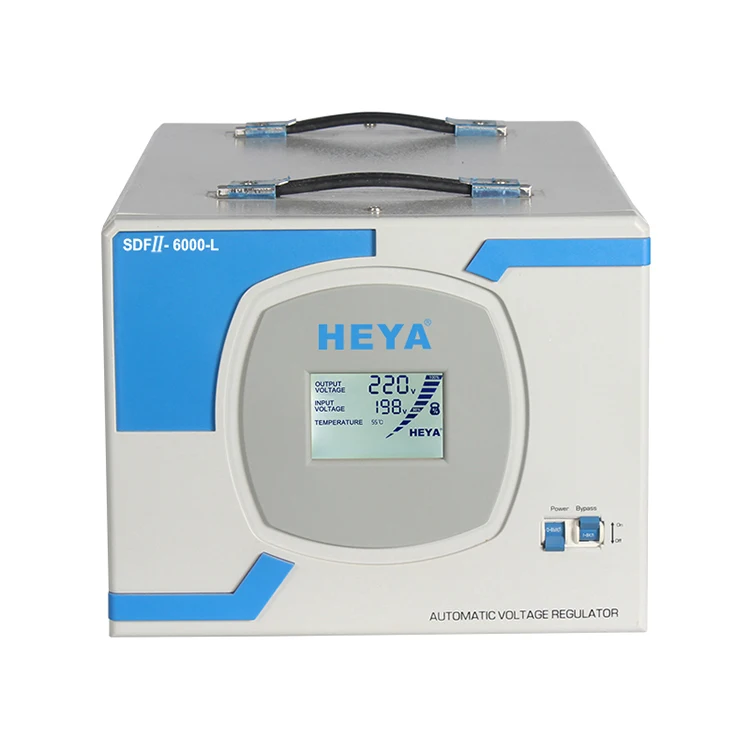

Factory direct sales servo type intelliigent LCD display SDF-II-10000-L full automatic AC voltage regulator

Product details

Parameters

Model	SDFII-4000-L	SDFII-6000-L	SDFII-10000-L	SRFII-12000-L
Nominal Power	4000VA	6000VA	10000VA	12000VA
Power Factor	0.6-1.0
Input
Operating Voltage Range	120~275V
Regulation Voltage Range	140~260V custom made
Frequency	50HZ

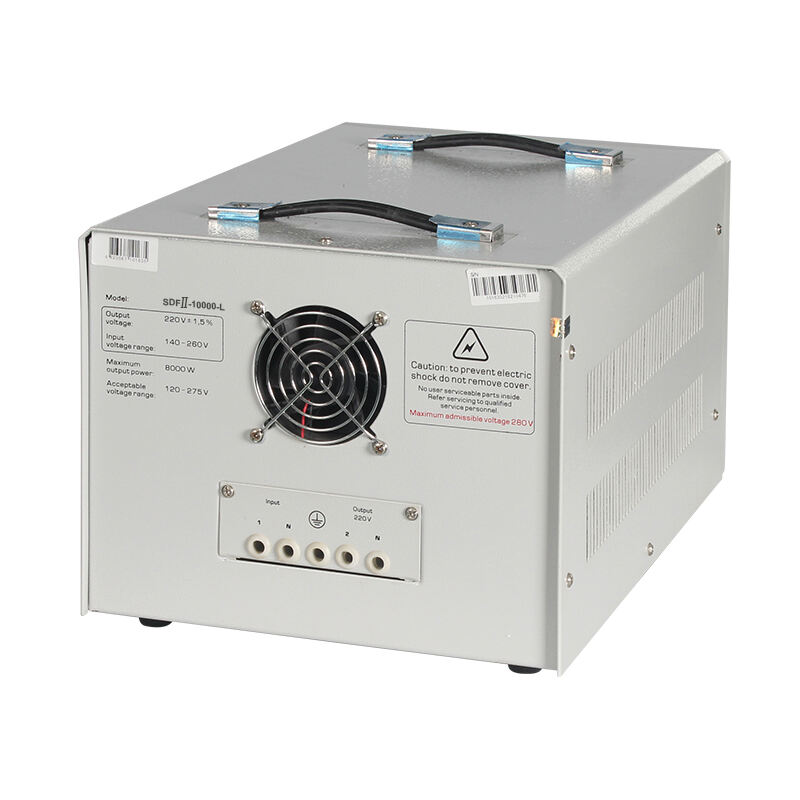

Connection Type	Input terminal block
Output
Operating Voltage	180~255V
High Cut Voltage	255V
Low Cut Voltage	180V
Safety Cycle	8 Seconds / 180 Seconds Optional
Frequency	50HZ
Connection Type	Output terminal block
Regulation
Regulation %	1.5% / 3.5%
Number of Taps	NO
Transformer Type	Toroidal auto transformer
Regulation Type	Servo type
Indicators

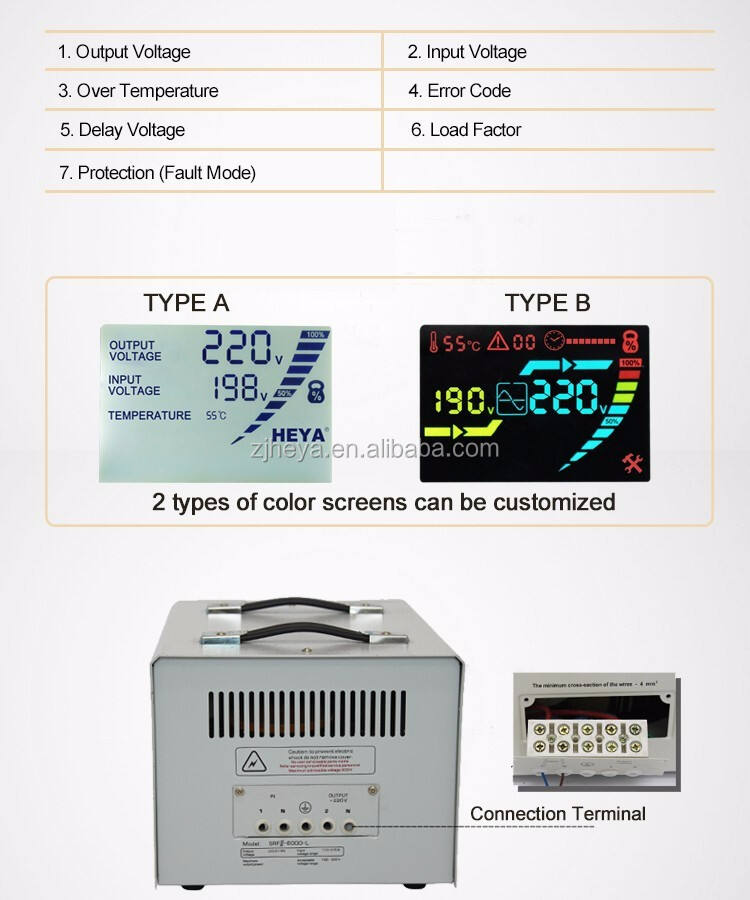

LED digital display	Input voltage Output voltage Delay time Load usage Normal working Temperature of transformer Error code
Protection
Over Temperature	Auto Shutdown at 120 ℃
Short Circuit	Auto Shutdown
Overload	Auto Shutdown
Over / Under Voltage	Auto Shutdown
Packaging information
Model	Unit PCS	Device Size MM	Package Size MM	G. W. KGS
SDFII-4000-L	1	350*245*210	430*325*280			13.42
SDFII-6000-L	1	350*245*210	430*325*280			16.06
SDFII-9000-L	1	455*280*240	530*360*310			25.44
SDFII-12000-L	1	455*280*240	530*360*310			27.96

Similar products

Company Profile

Certifications

Packing&Shipping

FAQ

Q 1. What's the payment term?
A. We accept TT, 30% deposit and 70% balance against copy of BL

Q 2. How's the delivery time?
A. usually it will take about 10-25 days for production. For sample usually in 1 week.

Q 3. Tell me the standard of package?
A. For the small capacity, color box as inner package and carton as delivery package.
For big capacity, use strong wooden case for protection.

Q 4. What kind of material of transformer?
A. For servo type stabilizer, we have two types, one 100% copper and the other is copper with aluminum. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the long life. Copper is better and also higher price. For relay type stabilizer, we use toroid coils, the material is aluminum. comparing with square coils, toroid coils with high efficiency.

Q 5. Could you offer Form A or C/O?
A. It totally not a problem. We can prepare relative documents to forgive affairs office or other office to apply for this certificate.

Q 6. Would you accept to use our logo?
A. Our logo is HEYA. If your order has good quantity, it absolute no problem to do OEM.
But you use our logo HEYA will be high appreciated.

Q 7. We want to know month capacity.
A. It depends on which model. For example for relay type small capacity, month capacity can reach near 10000pcs and big capacity near 2000pcs.

Q 8. Where is your market?

A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.

Q 9. What kind of certificate you have?
A. Our company already obtained ISO9001, BV, EAC, SONCAP, CE, PCT, SGS, design and technical patents certificates

HEYA

Introducing the SDF-II-10000-L. A full automatic AC voltage regulator that comes with advanced servo type intelligent LCD display. With this you can easily control and regulate the voltage in your home or office ensuring that your appliances and electronic devices are safe and reliable. Perfect for those who need a reliable efficient and user-friendly voltage regulator. Designed to offer you the best performance and features so you can use it with peace of mind. A factory-direct sales product which means you can enjoy affordable prices without sacrificing the quality of the product. You can purchase this product directly from the manufacturer making it the best choice for those who are looking for a reliable and high-quality voltage regulator. Comes with a servo type intelligent LCD display which allows you to monitor and control the voltage levels in real-time. Easy to read and understand even for those who are not familiar with voltage regulation. Full automatic which means it automatically regulates the voltage based on your settings. You don’t have to worry about anything as the HEYA SDF-II-10000-L will do everything for you. Beneficial for those who want to protect their valuable appliances and electronic devices from voltage fluctuations. With this product you can rest assured that your devices are safe from electrical damage caused by voltage surges and dips. Get yours now and enjoy uninterrupted power supply all day, every day.
