Factory Direct SDWII-4000-L Servo Type LED Relay Full Automatic AC Voltage Regulator Single Phase 220V Output for SVc Use
Description
|
Model
|
SDWII-4000-L
|
|
Nominal Power
|
4000W
|
|
Power Factor
|
0.6-1.0
|
|
Input
|
||||||
|
Operating Voltage Range
|
120~275V
|
Frequency
|
50HZ
|
|||
|
Regulation Voltage Range
|
140~260V custom made
|
Connection Type
|
Input terminal block
|
|||
|
Output
|
||||||
|
Operating Voltage
|
180~255V
|
Safety Cycle
|
8 Seconds / 180 Seconds Optional
|
|||
|
High Cut Voltage
|
255V
|
Frequency
|
50HZ
|
|||
|
Low Cut Voltage
|
180V
|
Connection Type
|
Output terminal block
|
|||
|
Regulation
|
||||||
|
Regulation %
|
1.5%/3.5%
|
Transformer Type
|
Toroidal auto transformer
|
|||
|
Number of Taps
|
NO
|
Regulation Type
|
Servo type
|
|||
|

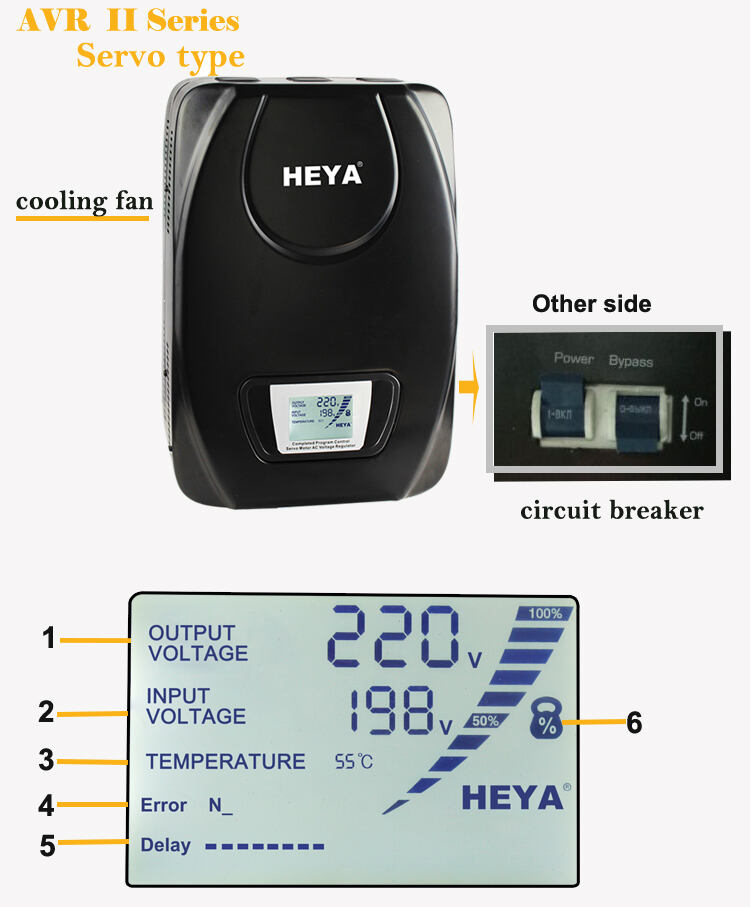

Indicators
|
||
|
LED display
|
Input voltage、Output voltage、Delay time、Load usage、Normal working、Temperature of transformer、Error code
|
|
|
Protection
|
||||||
|
Over Temperature
|
Auto Shutdown at 120 ℃
|
Overload
|
Auto Shutdown
|
|||
|
Short Circuit
|
Auto Shutdown
|
Over / Under Voltage
|
Auto Shutdown
|
|||
HEYA
Factory Direct is proud to provide the SDWII-4000-L Servo Type LED Relay complete Automatic AC Voltage Regulator, the solution is ideal single-phase production 220V SVC usage.
Uses advanced servo technology to hold your voltage production reliable and stable. The regulator immediately adjusts its output voltage to be sure your equipment functions smoothly and effortlessly, also during fluctuating voltage conditions.
Includes a display is top-quality accurately LED the voltage manufacturing, that makes it an easy task to monitor and adjust as required. The relay function also enables for easy switching between regulated and production is non-regulated providing you more freedom.
Made out of the buyer in your head, this voltage regulator is easy to incorporate and run. The design and lightweight is sleek up minimal space, making this suitable for use within many applications are different.
Made with quality elements, this voltage regulator is made to final. It comes down with a metal is strengthened for extra durability and it is created to manage conditions being issue is tough. The current weather are top-notch dependable and gratification is constant despite having use is hefty.
Provides stable and voltage is dependable, making certain your gear runs smoothly and effortlessly.
The HEYA SDWII-4000-L Servo Type LED Relay Full Automatic AC Voltage Regulator is merely a must-have for anybody looking for stable and output is voltage reliable.
