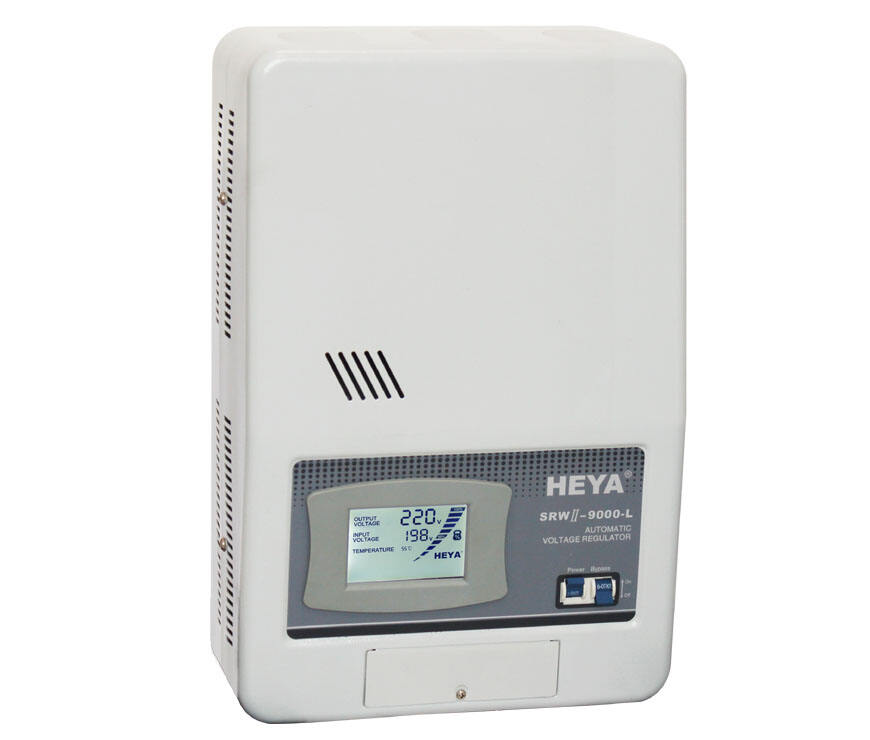

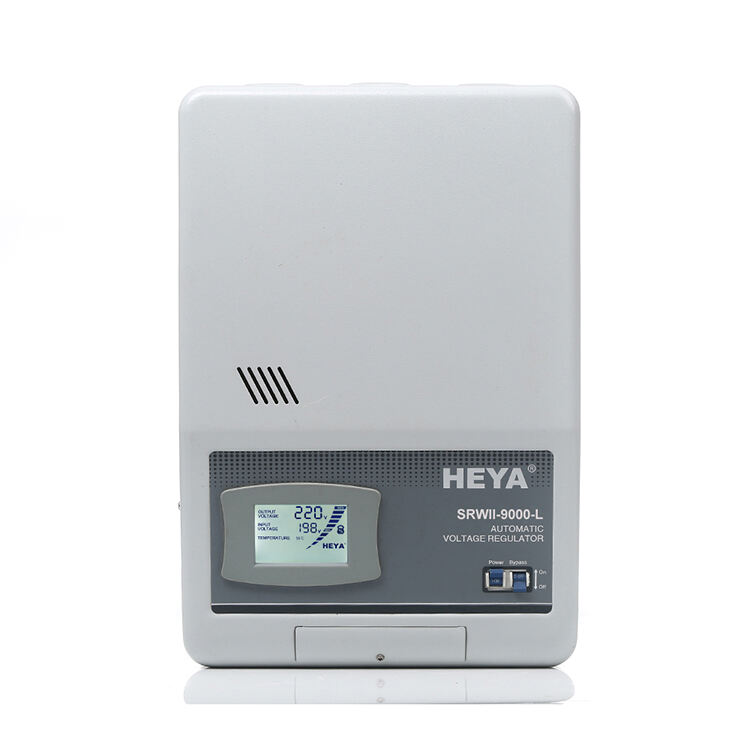

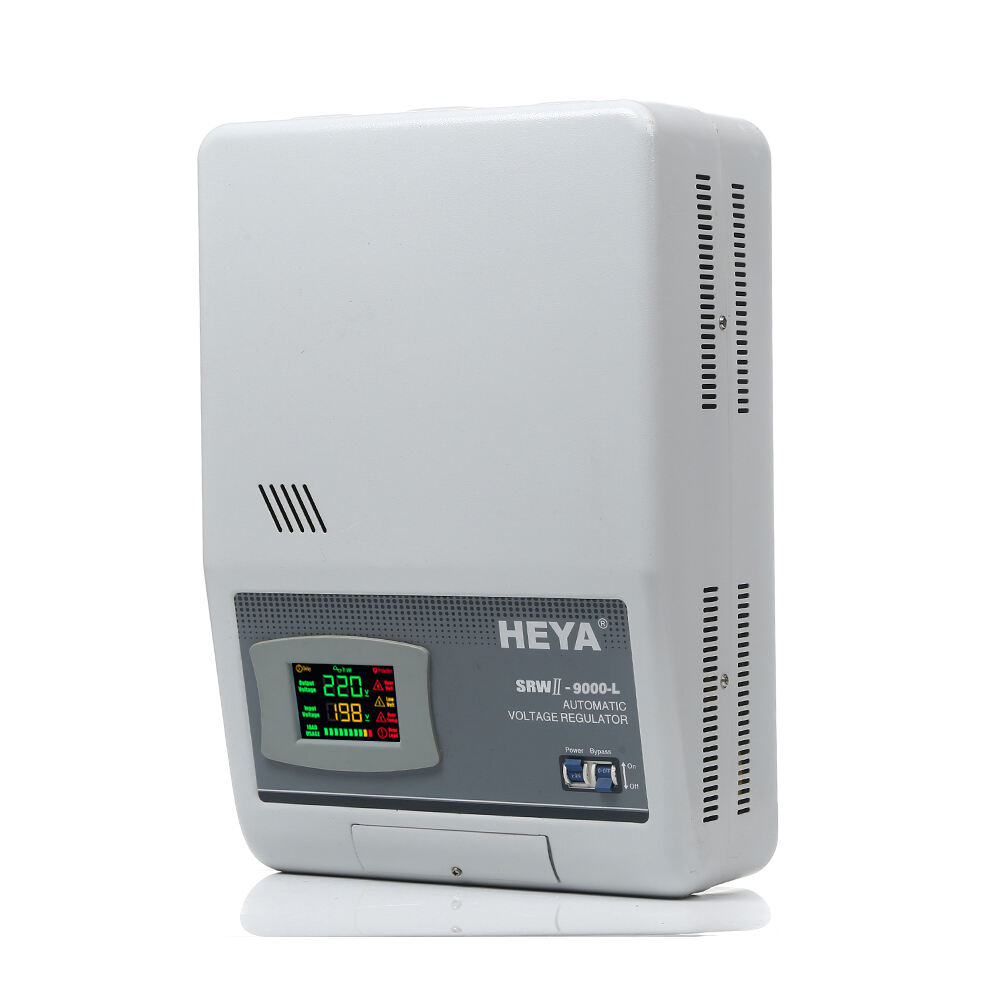

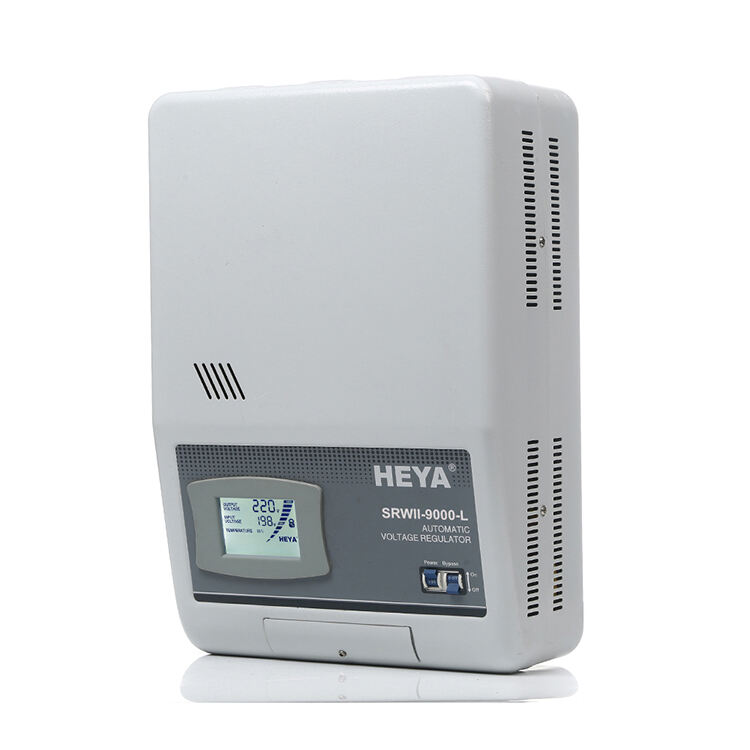

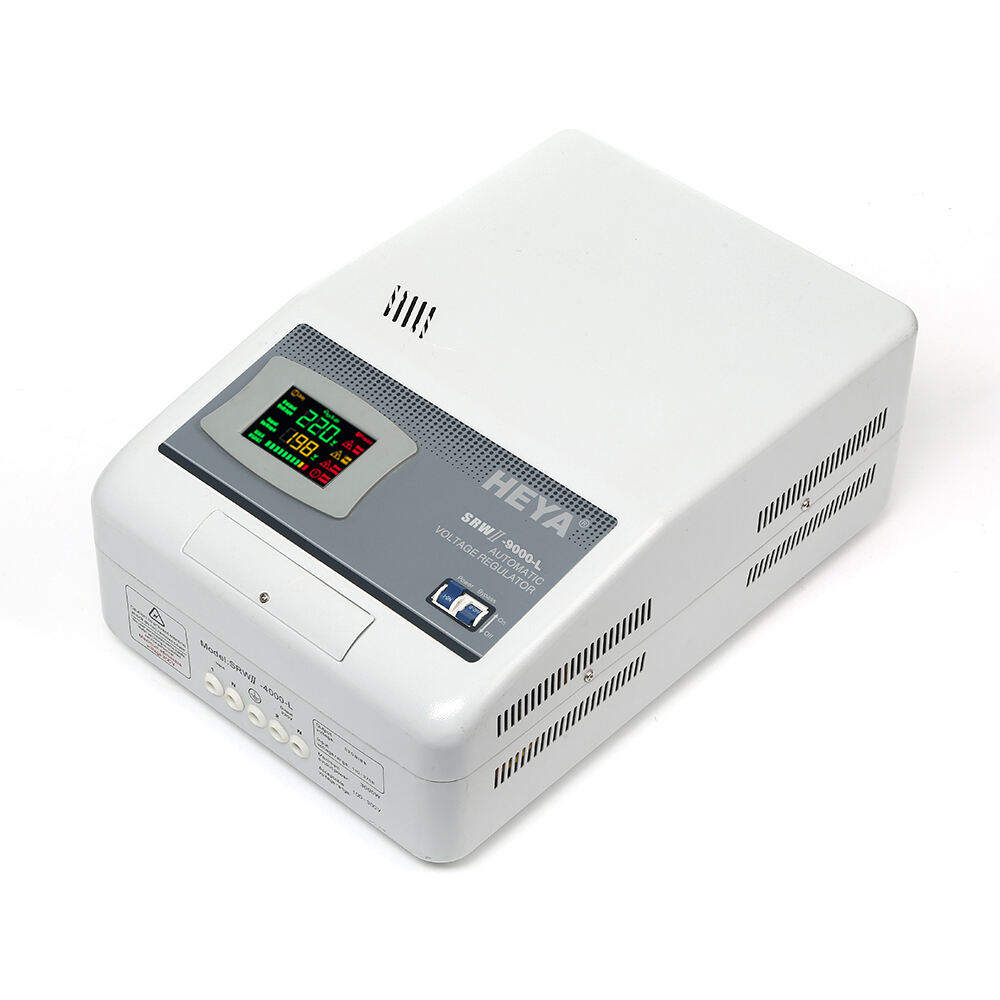

Hot SRWII-9000-L Single Phase Relay Controlled Wall Type LED display Automatic AC Voltage Regulator

Presenting the SRWII-9000-L this will be  Single Relay Wall hot LED Automatic AC Voltage Regulator from HEYA - the perfect solution is  apparent is ultimate maintaining your devices safe and operating completely! Perfect for domiciles workplaces and enterprises which can be little this voltage  advanced is made to allow the amount total is total is acceptable of supply to your devices no matter adjustments or surges when you look at the energy. The SRWII-9000-L this will be definitely Single this will be  Relay Wall hot LED Automatic AC Voltage Regulator from HEYA finished up being built to immediately manage while offering the voltage supply to everyone your critical products such as pcs printers televisions sound systems and gear this could be  also medical. Its effective technology this is  relay-controlled that the specific services and products have  basically the appropriate amount of voltage supply supplying security this is  dependable energy surges under-voltage over-voltage as well as other electric disruptions. This voltage features which can be extremely smart robust and construction this might be  sturdy ensuring an lifespan extended satisfaction  great. The hot Single period SRWII-9000-L Wall Type LED display Automatic AC Voltage Regulator is easy to produce and run along with its wall-mounted design and Diode display  light-emitting. The display this can be  LED programs information essential the voltage supply making sure you could be constantly alert to the status in your power. More over this voltage regulator carries a mixture security and security features to help keep both you and your items being electronic. It  is an cut-off automated in case of over-voltage or under-voltage preventing problems in terms of items. It offers safety overload that guarantees the regulator will never be overloaded beyond ever its ability

Product details

Parameters

Model	SRWII-4000-L	SRWII-6000-L	SRWII-9000-L	SRWII-12000-L
Nominal Power	4000VA	6000VA	9000VA	12000VA
Power Factor	0.6-1.0
Input
Operating Voltage Range	95~285V
Regulation Voltage Range	110~275V
Frequency	50HZ
Connection Type	Input terminal block
Output
Operating Voltage	180~255V
High Cut Voltage	255V
Low Cut Voltage	180V
Safety Cycle	8 Seconds / 180 Seconds Optional
Frequency	50HZ

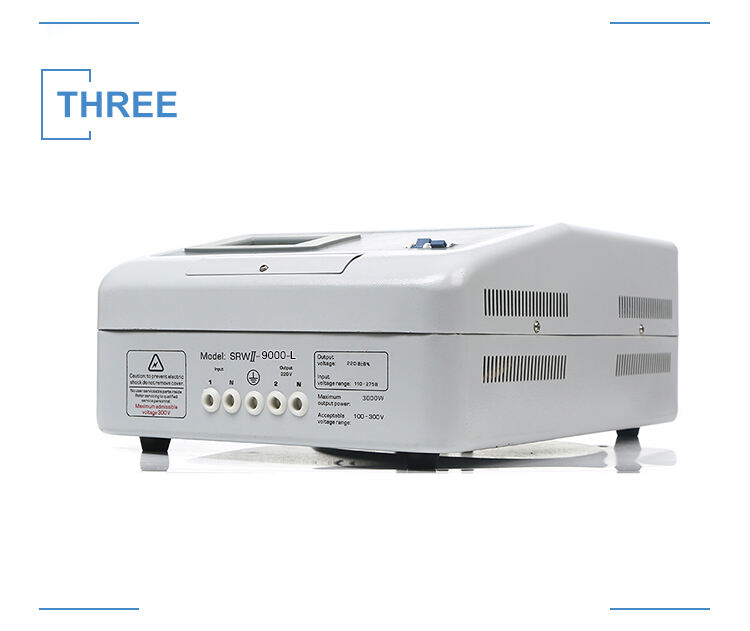

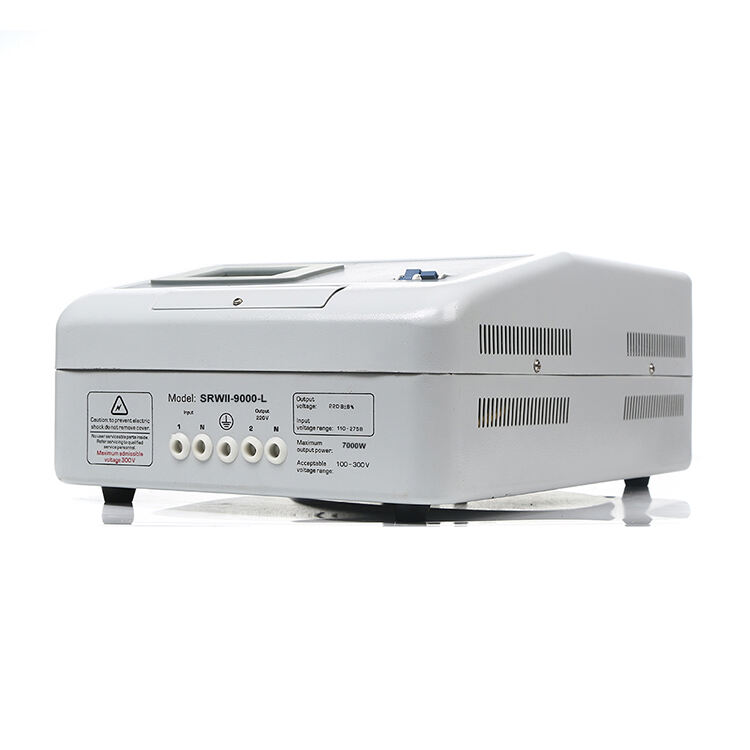

Connection Type	Output terminal block
Regulation
Regulation %	8%
Number of Taps	7
Transformer Type	Toroidal auto transformer
Regulation Type	Relay type
Indicators

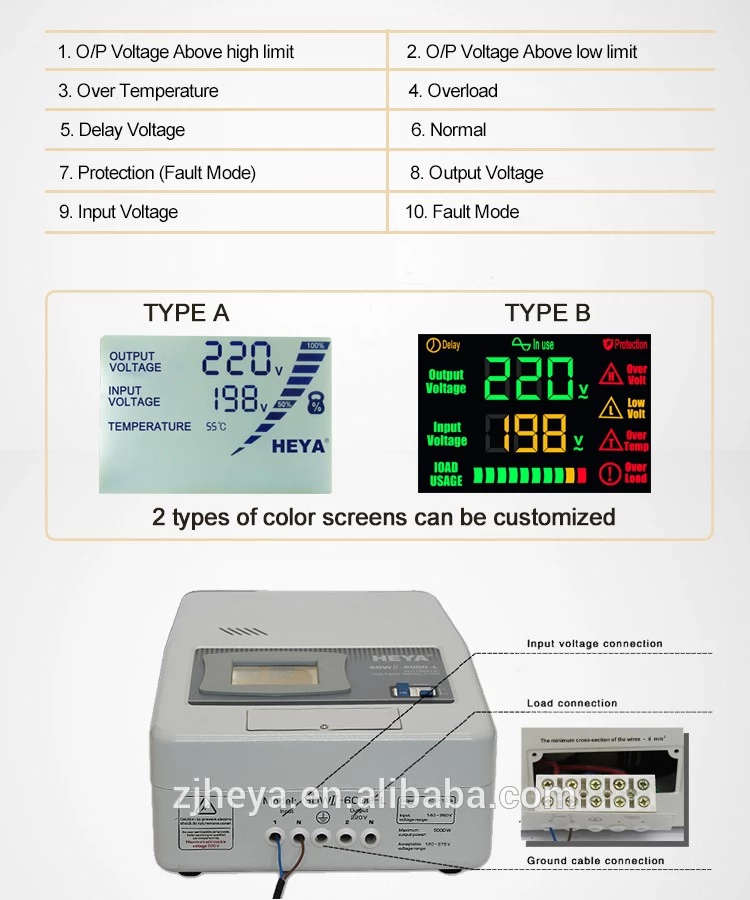

LED digital display	Input voltage Output voltage Delay time Load usage Normal working Temperature of transformer Error code
Protection
Over Temperature	Auto Shutdown at 120 ℃
Short Circuit	Auto Shutdown
Overload	Auto Shutdown
Over / Under Voltage	Auto Shutdown
Packaging information
Model	Unit PCS	Device Size MM	Package Size MM	G. W. KGS
SRWII-4000-L	1	385*265*155	445*330*210			12.10
SRWII-6000-L	1	385*265*155	445*330*210			13.20
SRWII-9000-L	1	385*265*155	445*330*210			18.20
SRWII-12000-L	1	440*300*175	535*395*265			22.16

Similar products

Company Profile

Certifications

Packing&Shipping

FAQ

Q 1. What's the payment term?
A. We accept TT 30% deposit and 70% balance against copy of BL.

Q 2. How's the delivery time?
A. usually it will take about 10-25 days for production. For sample usually in 1 week.

Q 3. Tell me the standard of package?
A. For the small capacity color box as inner package and carton as delivery package.
For big capacity use strong wooden case for protection.

Q 4. What kind of material of transformer?
A. For servo type stabilizer we have two types one 100% copper and the other is copper with aluminum. It depends on your requirement. In fact those two have no difference if normal work well. Only except the long life. Copper is better and also higher price. For relay type stabilizer we use toroid coils the material is aluminum. comparing with square coils toroid coils with high efficiency.

Q 5. Could you offer Form A or C/O?
A. It totally not a problem. We can prepare relative documents to forgive affairs office or other office to apply for this certificate.

Q 6. Would you accept to use our logo?
A. Our logo is HEYA. If your order has good quantity it absolute no problem to do OEM.
But you use our logo HEYA will be high appreciated.

Q 7. We want to know month capacity.
A. It depends on which model. For example for relay type small capacity  month capacity can reach near 10000pcs and big capacity near 2000pcs.

Q 8. Where is your market?

A. Our products are popular inNorth America South America Eastern Europe Southeast Asia AfricaOceania Mid East Eastern Asia Western Europeand so on. Some of them are our regular customers and some of them are developing.
We hope you can join us and make mutual benefit from our cooperation.

Q 9. What kind of certificate you have?
A. Our company already obtained ISO9001 BV EAC SONCAP CE PCT SGSdesign and technical patents certificates
